Sheet Pile Hire
Sheet Pile Hire
Sheet Piles can be used for permanent or temporary applications. Temporary applications can be retaining, shoring, support structures, cofferdams, and infrastructure projects such as road construction and excavations, especially when groundwater is quite shallow.
Hire Or Buy
SP3A Sheet Piles
Lengths available from 3m to 12m. See below for specifications.

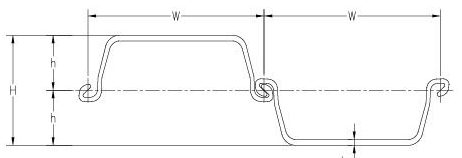

| Width (W) | Height (h) | Height (H) | Plate thickness (t) |
| mm | mm | mm | mm |
| 400 | 150 | 300 | 13.1 |
| Section area | Weight | Moment of inertia | Section modulus |
| cm2 | kg/m | cm4/m | cm3/m |
| 74.40 | 58.4 | 2790 | 250 |
| Section area | Weight | Moment of inertia | Section modulus |
| cm2 | kg/m2 | cm4/m | cm3/m |
| 186.0 | 146 | 22800 | 1520 |
Hire Or Buy
SP3W Sheet Piles
Lengths available from 3m to 15m. Grade SY390.
See below for specifications.
| Width (W) | Height (h) | Height (H) | Plate thickness (t) |
| mm | mm | mm | mm |
| 600 | 180 | 360 | 13.4 |
| Section area | Weight | Moment of inertia | Section modulus |
| cm2 | kg/m | cm4/m | cm3/m |
| 103.90 | 81.6 | 5220 | 376 |
| Section area | Weight | Moment of inertia | Section modulus |
| cm2 | kg/m2 | cm4/m | cm3/m |
| 173.2 | 136 | 32400 | 1800 |
Hire Or Buy
SP4W Sheet Piles
Lengths available from 3m to 15m.
See below for specifications.
| Width (W) | Height (h) | Plate thickness (t) |
| mm | mm | mm |
| 600 | 210 | 18 |
| Section area | Weight | Moment of inertia | Section modulus |
| cm2 | kg/m2 | cm4/m | cm3/m |
| 225.5 | 177 | 56700 | 2700 |
Hire Or Buy

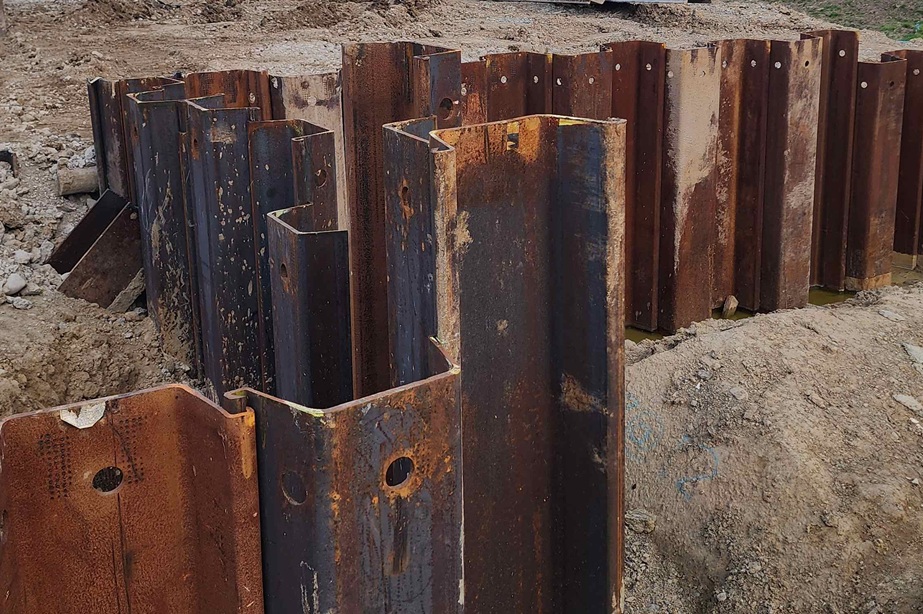

Corner Sections
Corner sections are needed for linking different angles of sheet pile walls. Weld on 90o C9 clutch corner sections are available in 12m lengths.
Limited weld on corner sections are available for sale
